Soldering the filter capacitors
SBL Micro V2
Parts
BEC
BEC for 2 Servos
BEC for 4 Servos
BEC testing
The processor
Processor part 1
Processor part 2
Testing the processor
The output stage
Output stage control
Testing output stage control
MOSFET's
Testing the MOSFET's
Filter capacitors
Soldering the filter capacitors
Testing filter capacitors
EMF Evaluation
Soldering EMF parts
Testing EMF
Remaining parts
Completion
News

As described on the preceding page:

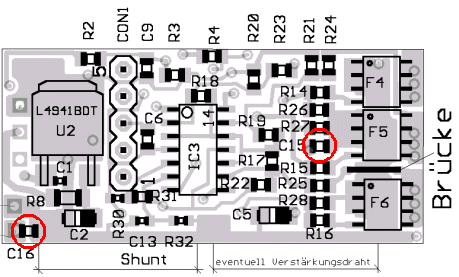

Be careful while soldering C14. It’s very easy to produce a short-circuit between C14 and the output of F3!!!

Hint: Don’t confound C15 with R15. They are very close together.

Nr.

Part

Type

Form

2

C14, C15, C16

100n

0805

Oberseite
Unterseite
